Typical Restoration Details

Image of Typical Cross Section of Restored Landfill

1. Leachate Treatment Plant
2. Landfill Gas Flaring / Utilization Plant
3. Leachate / Gas Extraction
4. Leachate Header
5. Gas Header
6. Recreational or Other Beneficial Use
7. Gas Venting Trench
8. Leachate Level
9. Drainage Layer
10. Capping System

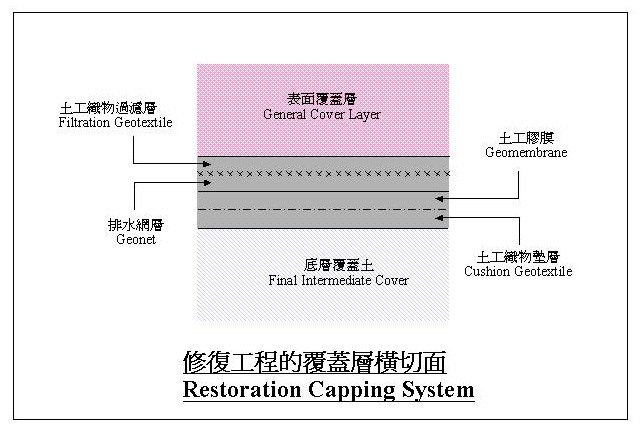

Image of Final Capping System

Please click here for the layout plan of the Restoration Capping System
